DFT

DFT/Coating Thickness Gauge

MMS® Inspections

We know DFT/coating thickness gauges! Call for help. 214-766-4922
Currently in STOCK.

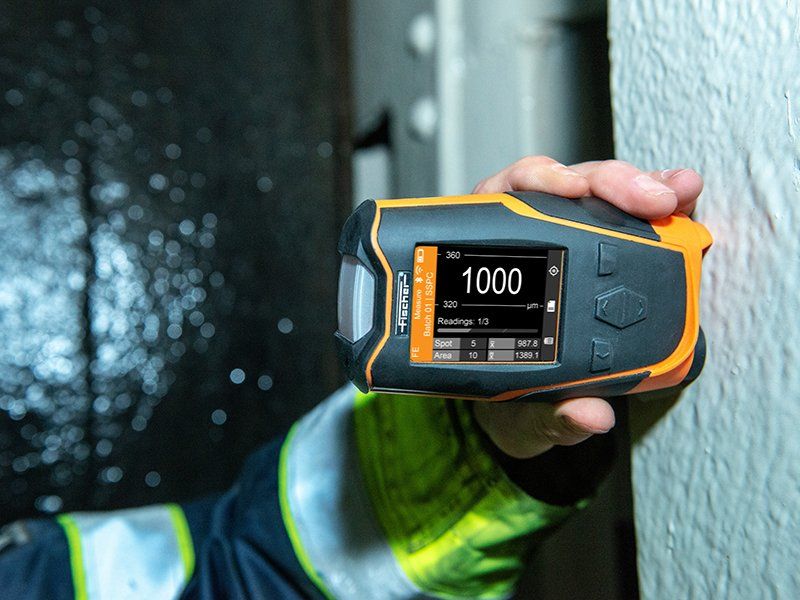

Developed by anti-corrosion experts, the MMS® Inspection devices will impress with robustness, usability and performance. All your required DFT/ coating thickness measurement tasks in heavy corrosion protection, aerospace, plating, automotive, paint, military, shipbuilding, above-ground storage, metal structures are solved quickly and reliably. The MMS® Inspection DFT/coating thickness gauge is the handheld device for the simple layer thickness measurement on steel (ferrous) and non-ferrous metals.
The MMS® Inspection comes in three different models Start, Enhanced and High versions.  They can can be purchased for ferrous only or (Dualscope) steel (ferrous) and non-ferrous metals such as Al, Ti, Cu, Zn and Brass.

MMS INSPECTION DFT FE S (Start)

  • Ferrous steel only
  • 0 – 100 mil, 0 – 2500 µm measurement range
  • Stores 10,000 readings in 1 batch
  • Rugged construction, IP65 rated
  • Dust Tight, Water Protected
  • Visual and vibrating out of tolerance notification
  • USB connection
  • Full replacement warranty

MMS INSPECTION DFT FE E (Enhanced)

  • Ferrous steel only
  • 0 – 100 mil, 0 – 2500 µm measurement range
  • Stores 250,000 readings into up to 2,500 batches
  • Rugged construction, IP65 rated
  • Dust Tight, Water Protected
  • Visual and vibrating out of tolerance notification
  • USB connection
  • Full replacement warranty

MMS INSPECTION DFT FE H (High)

  • Ferrous steel only
  • On-board industry inspection protocols; SSPC-PA2, ISO, Frosio, etc.
  • 0 – 100 mil, 0 – 2500 µm measurement range
  • Stores 250,000 readings into up to 2,500 batches
  • Rugged construction, IP65 rated
  • Dust Tight, Water Protected
  • Visual and vibrating out of tolerance notification
  • USB, WiFi, Bluetooth® connectivity
  • Full replacement warranty

MMS INSPECTION DFT FE/NF S (Start)

  • (Dualscope) Ferrous steel and non-ferrous
  • 0 – 100 mil, 0 – 2500 µm measurement range
  • Stores 10,000 readings in 1 batch
  • Rugged construction, IP65 rated
  • Dust Tight, Water Protected
  • Visual and vibrating out of tolerance notification
  • USB connection
  • Full replacement warranty

MMS INSPECTION DFT FE/NF E (Enhanced)

  • (Dualscope) Ferrous steel and non-ferrous
  • 0 – 100 mil, 0 – 2500 µm measurement range
  • Stores 250,000 readings into up to 2,500 batches
  • Rugged construction, IP65 rated
  • Dust Tight, Water Protected
  • Visual and vibrating out of tolerance notification
  • USB connection
  • Full replacement warranty

MMS INSPECTION DFT FE/NF H (High)

  • (Dualscope) Ferrous steel and non-ferrous On-board inspection protocals; SSPC-PA2, ISO, Frosio, etc.
  • 0 – 100 mil, 0 – 2500 µm measurement range
  • Stores 250,000 readings into up to 2,500 batches
  • Rugged construction, IP65 rated
  • Dust Tight, Water Protected
  • Visual and vibrating out of tolerance notification
  • USB, WiFi, Bluetooth® connectivity
  • Full replacement warranty

Features

  • Automatically recognizes the substrate material
  • Broad measurement range (0 – 2500 μm/9mils)
  • Modes for single-point and continuous (free-running) testing with up to 70 measurements per minute
  • An LED on the probe indicates when tolerance limits are breached
  • Data analysis with the Fischer app for smartphone or tablet
  • Potentially damaged areas can be documented with photos in the reports
  • Bluetooth® connection to mobile devices Apple or Android
  • Due to its robust housing, even under harsh environmental conditions the gauge remains extremely reliable
All of the instruments certified will be within the original manufacturer's specifications. The instrument's calibration function has been checked my performing a test calibration using precision secondary thickness standards which are traceable to the National Institute of Standards which are traceable to the National Institute of Standards and Technology (NIST). The test calibration was found to be capable of producing measurements accuracy of the standards measurement within an interval of ± 5%.

FMP10/40C

We know DFT/coating thickness gauges! Call for help. 214-766-4922
Currently in STOCK.

The dry film thickness (DFT)  or coating thickness gauges from the FMP10C  series deliver precise results and the various measurement techniques available make them highly flexible at reseasonable price. Models are available with magnetic inductive test method on ferrous substrates (DELTASCOPE®), eddy current test method on non-ferrous substrates (ISOSCOPE®) or both techniques combined (DUALSCOPE®). Different probes are available with a variety of sizes, thickness ranges, accuracy, field effects, etc. which will provide you with great solution for you coating thickness, DFT or dry film thickness gauge.

Features

  • Coatings in the micrometer range on non-ferrous metals, iron or steel
  • Thick dry film coatings made from non-ferrous metals or protective coatings on steel
  • Features:
  • Interchangeable probes provide flexibility for a diverse range of dry film thickness (DFT) measurement tasks
  • Efficient and structured measurement, with enough memory for several thousand applications, as well as many evaluation and display functions
  • Measure according to standards, with special modes for IMO PSPC,
  • SSPC-PA2, QUALANOD or QUALICOAT

Applications

  • DELTASCOPE® for dry film thickness (DFT) coatings on steel and iron
  • ISOSCOPE® for dry film thickness (DFT) coatings on aluminum, Titanium and other non-ferrous metals
  • DUALSCOPE® with automatic substrate recognition and the combination of two measurement techniques (magnetic induction and eddy current); DUALSCOPE® can measure a variety of DFT coatings on iron/steel or non-ferromagnetic metals and on non-conductive substrates

Common Questions

  • Do you carry Feritscopes, FMP20, FMP30, FMP40, MMS Inspections, Dualscopes

  • How often do you unit need to be calibrated?

    In order to meet and/or maintain most quality programs on quality control equipment, statements of calibration or calibrations must be performed every 6 to 12 months.

  • What type of calibrations does Vernier Sales offer?

    VSI can provide 17025 calibrations if needed through a partnering company and follows original manufacturer's specifications.

  • What calibration or tracking systems do you use?

    We have implemented GageTrak to provide more in-depth certifications and tracking information.

  • Do the units come certified?

    All of the instruments certified will be within the original manufacturer's specifications. The instrument's calibration function has been checked my performing a test calibration using precision secondary thickness standards which are traceable to the National Institute of Standards which are traceable to the National Institute of Standards and Technology (NIST). The test calibration was found to be capable of producing measurements accuracy of the standards measurement within an interval of ± 5%.

  • How long do repairs take?

    We understand how important your equipment is to your operation. Therefore, we give prompt attention to all repairs. A priority service is available that with a turnaround usually of your unit within 24-48 hours of our receiving it for repairs. In most instances repairs, can be on-site within a few weeks of notification or you may send your unit in for service, turnaround in about 2 days to a week. Diagnostics and repair may take longer depending on parts and availability.
